Day 08 - VPC Security & Flow Logs

Date: 2025-09-17 (Wednesday)
Status: “Done”

Lecture Notes

VPC Security

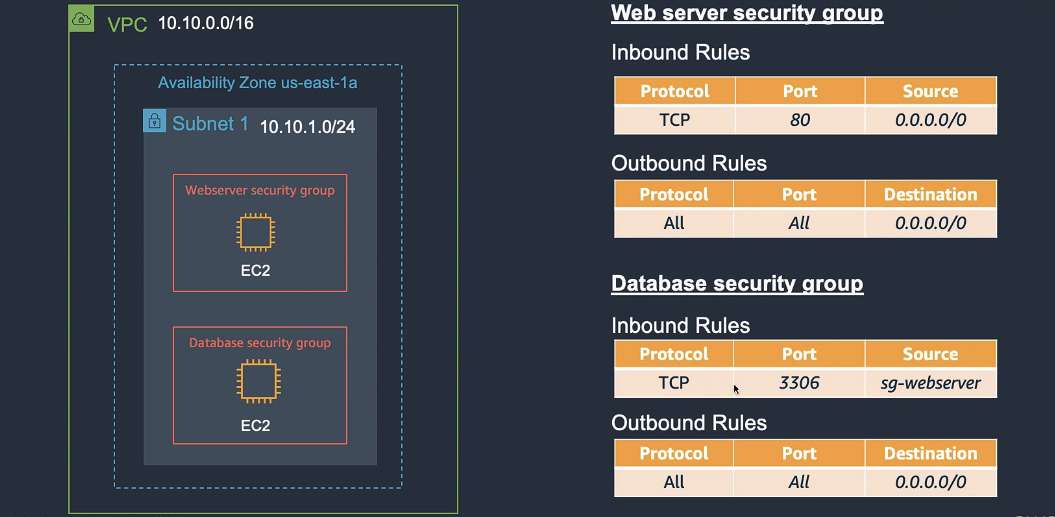

Security Group (SG)

  • A stateful virtual firewall that controls inbound and outbound traffic to AWS resources.
  • Rules are based on protocol, port, source, or another security group.
  • Only allow rules are supported.
  • Applied to Elastic Network Interfaces (ENIs).

image image

Security Group Characteristics:

  • Stateful: return traffic automatically allowed
  • Supports allow rules only
  • Evaluates all rules before deciding
  • Applies to instance level (ENI)

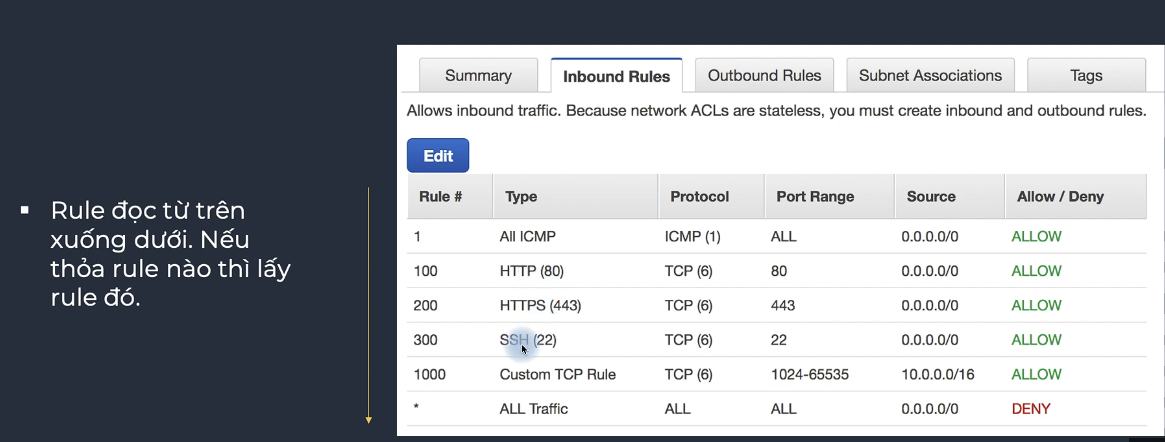

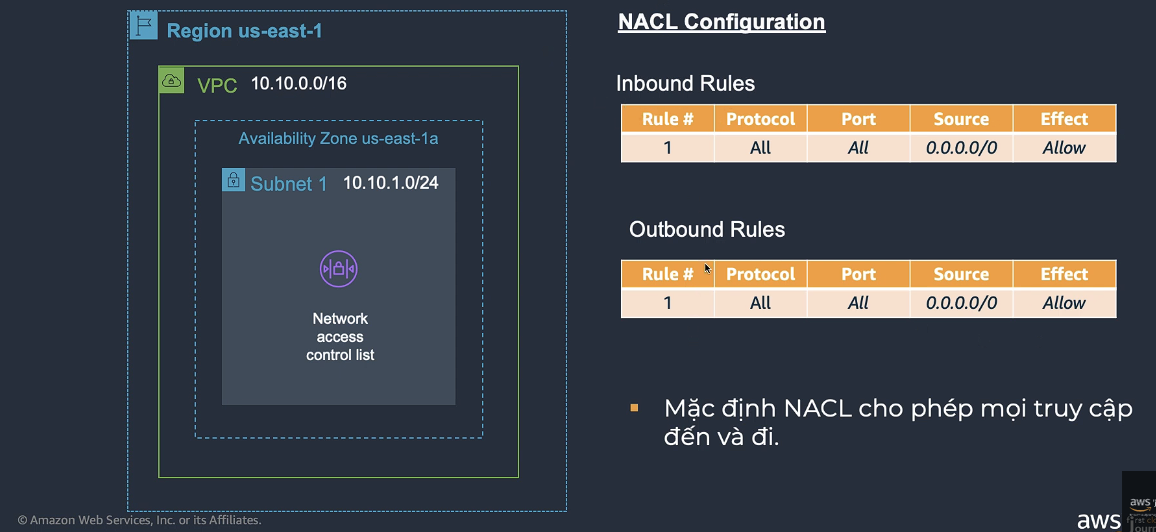

Network Access Control List (NACL)

  • A stateless virtual firewall that operates at the subnet level.
  • Rules control inbound and outbound traffic by protocol, port, and source.
  • Default NACL allows all traffic.

image image

NACL Characteristics:

  • Stateless: must explicitly allow return traffic
  • Supports both allow and deny rules
  • Rules processed in number order
  • Applies to subnet level

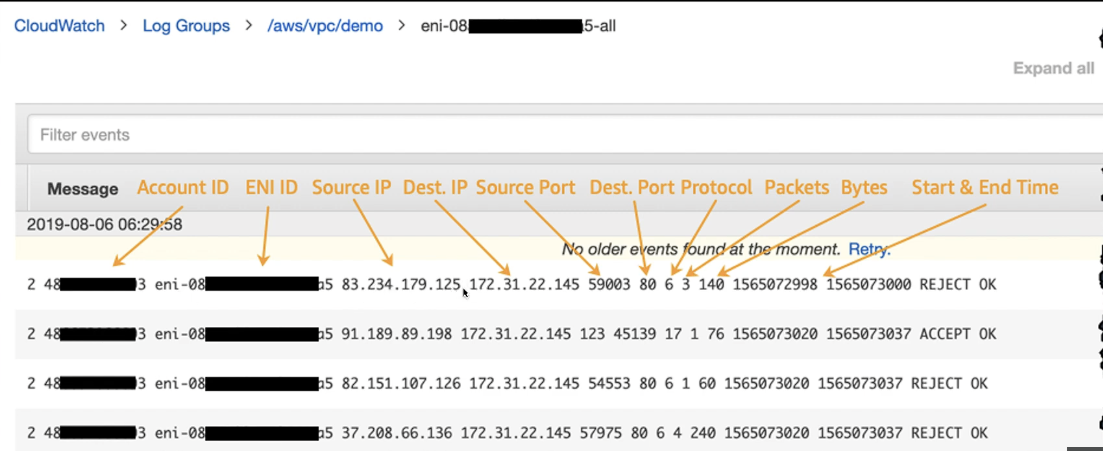

VPC Flow Logs

  • Capture metadata about IP traffic to and from network interfaces in your VPC.
  • Logs can be delivered to Amazon CloudWatch Logs or S3.
  • Flow Logs do not record packet payloads.


Flow Log Use Cases:

  • Troubleshoot connectivity issues
  • Monitor traffic patterns
  • Security analysis
  • Compliance requirements

Hands-On Labs

Lab 03 – Amazon VPC & Networking (continued)

  1. Launch EC2 Instances in Subnets → 04-1
  2. Test Connection Between Instances → 04-2
  3. Create NAT Gateway (Private ↔ Internet) → 04-3
  4. EC2 Instance Connect Endpoint (no bastion) → 04-5
